Joint group V belt
1. The combined V-belt is a V-belt group in which the top surfaces of several ordinary V-belts or narrow V-belts are connected by connecting layers. V-belts are divided into joint-group ordinary V-belts [AJ, BJ, CJ, DJ, EJ] and joint-group narrow V-belts [3V(9J), 5V(15J), 8V(25J), SPZJ, SPAJ, SPBJ, SPCJ] .
2. The combined V-belt produced by our company can meet various working conditions and applications, especially suitable for high-power equipment transmission, such as crushers, air compressors, etc.; advantages: the length of each V-belt is the same, and the integrity is good; it can be eliminated Disadvantages such as vibration, flapping, and belt turning during operation of each single root; the force is evenly applied during transmission and can withstand larger loads.

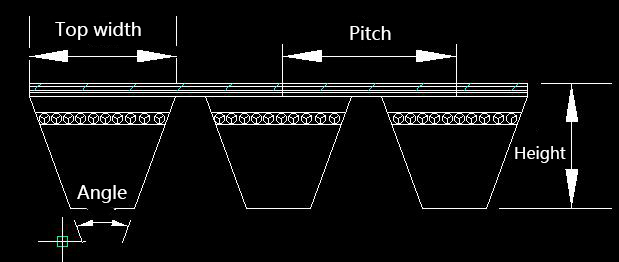

Product structure size
Production model
|
Top width/mm
|
Height/mm
|
Angle/°
|
Pitch/mm
|
AJ
|
13
|
10
|
40
|
15.88
|
BJ
|
17
|
13
|
40
|
19.05
|
CJ
|
22
|
17
|
40
|
25.40
|
DJ
|
32
|
21.5
|
40
|
36.53
|
NOT
|
39
|
25.5
|
40
|
44.5
|
|
|
|
|
|
|
|
|
|
|
Production model
|
Top width/mm
|
Height/mm
|
Angle/°
|
Pitch/mm
|
3V (9J)
|
9.7
|
9.7
|
40
|
10.3
|
5V(15J)
|
15.7
|
15.7
|
40
|
17.5
|
8V(25J)
|
25.4
|
25.4
|
40
|
28.6
|
SPZJ
|
10.5
|
10
|
40
|
12.5
|
SPAJ
|
13.6
|
12.3
|
40
|
15.6
|
SPBJ
|
17
|
16.5
|
40
|
19
|
SPCJ
|
22
|
21
|
40
|
25.5
|
